Plastic injection molding is a precise, high-tech manufacturing process for to manufacture of quality plastic components in large quantities. Although science might be used to design the mold and select materials, expertise in performing the actual process of manufacture is equally important to achieve quality, consistency, and efficiency in the end product.
The entire process of plastic injection molding from preparation to production is explained in this guide, focusing on the chief operating steps and best practices in order to obtain the best outcome.
1. Pre-Molding Preparation
Before molding the initial shot, preparation is the key to success.
1) Material Handling and Drying
The majority of thermoplastics are hygroscopic and absorb moisture from the atmosphere. Poor drying will produce cosmetic defects, bubbles, splay marks, or reduced mechanical toughness. A defined drying time, temperature, and dew point requirement exists for every resin to be strictly followed. I once visited a China insert injection molding factory. They placed all the materials in a dry and ventilated warehouse, and placed dehumidifiers, desiccants and other equipment in the warehouse to effectively reduce the humidity of the air.
2) Equipment Preheating and Calibration
Molding machines and molds must warm up to their preconditioned working temperatures prior to production. Barrel heating profiles, mold temperature controls, and hydraulic calibrations must be verified as correct to prevent cold spots, incomplete fills, or thermal stress defects.
3) Setup Validation
Every assist system, such as hot runner control, temperature control, and robots, must be validated for conformance with actual operation.
All alarms and sensors should be checked so they are able to supply proper, timely feedback through production.
2. Mold Installation Setup
Precise mold installation is essential to maintain consistency, safeguard, and productivity.
1) Mold Cleaning and Inspection
Cleaning of the mold and visual inspection for wear, damage, or dirt prior to mounting is required. It should not have any contaminants on the vital areas such as parting lines, ejector pins, and cooling channels.
2) Centering and Alignment
Accurate centering of the mold provides uniform clamping pressure and maintains both the machine and mold in a less worn-out condition. The molds get distorted or bent due to flash, non-uniform filling, and early mechanical failure.
3) Clamping Force Calculation
The clamping force must be accurately adjusted based on the projected area of the part and injection pressure. Flashing may occur due to incorrect clamping, whereas excessive force may potentially harm mold and machine platens.

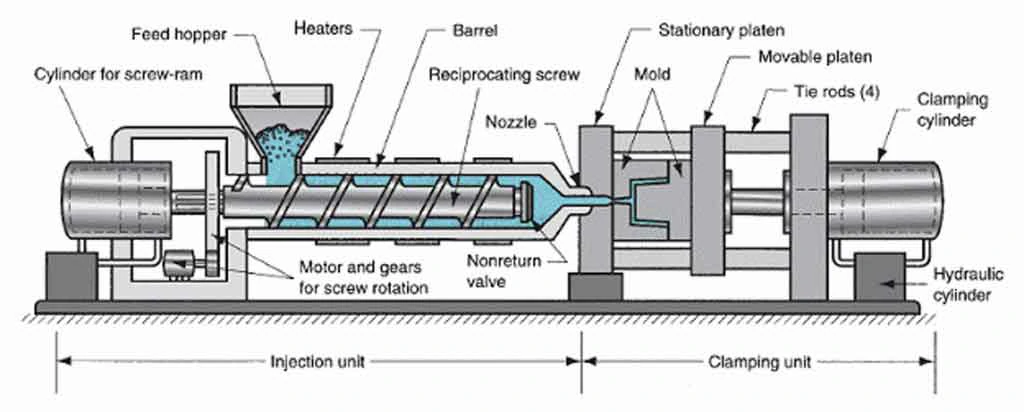

4) Setup of Injection Unit
Shot size, injection pressure limits, back pressure, and screw speed parameters must be set with regard to the material and part design to ensure smooth, stable running from the first cycle.
3. First Shot Sampling and Trial Runs
These initial production runs are necessary in order to verify that the setup is correct and the process has stabilized.
1) Process Warm-Up
There are some initial shots to be fired for temperature stabilizing throughout the barrel and mold. The first samples have to be rejected until the equipment is in a state of constant.
2) First Article Inspections
The first qualified molded parts undergo a full dimensional check and a cosmetic check for acceptance to the approved design. This includes the checking of critical-to-function dimensions, part weight, surface finish, and mechanical integrity.
3) Fine-Tuning Adjustments
On the basis of FAI results, fine-tuning adjustments can be implemented in the form of small injection speed profiles, pack pressure, hold time, or cooling cycle adjustments to improve part quality and cycle efficiency.
4. Full-Scale Production Control
With process certification, production goes on full scale with a focus on consistency, efficiency, and long-term quality. Now there has to be rigid control to prevent drift and ensure repeatable results.
1) Cycle Monitoring
Critical parameters such as the cycle time, melt temperatures, mold temperatures, injection pressures, and hold pressures must be monitored in real-time. Current machines must have a warning for any deviation outside of the accepted process window so that immediate corrective measures can be taken to minimize scrap and downtime.
2) In-Process Inspection
Despite stable cycles, statistically based sampling plans must be used to guarantee that dimensions, surface finish, and mechanical properties remain within specification. Periodic checks enable early variation detection and traceability for quality control.
3) Process Stability Audits
Cp and Cpk analysis on a regular basis ensures the process remains centered and capable. Aiming for Cpk values above 1.33 ensures resistance to normal variation, encompassing customer requirements and internal quality specifications.
5. Batch Switchovers and Material Switchovers
Switching between batches or materials means bringing about hazards to be handled with caution.
1) Material Purging
Introducing a new resin calls for the injection unit to be purged out for avoiding contamination. Different materials might have a dissimilar melt point or chemical compatibility.
2) Mold Change Procedures
During mold changes, standardized changeover checklists must be utilized to minimize downtime, protect personnel, and maintain machine calibration.
3) Process Revalidation
With every mold or material change, a limited first-article validation is employed to verify that the new setup is making conforming parts before regular full production resumes.
6. Shutdown and Post-Production Procedures
Proper shutdown ensures equipment longevity and readiness for future production.
1) Controlled Cool-Down
Barrel temperatures and mold heating loops need to be cooled down slowly in order to avoid thermal shock or cracking.
2) Mold Cleaning and Preservation
The molds need to be cleaned, checked for wear and tear, and sprayed with rust-preventative sprays immediately after manufacturing and before storage.
3) Data Recording and Traceability
Key production parameters, lot numbers, inspection results, and deviations need to be traced and recorded to improve processes.
7. Continuous Improvement in Molding Operations
Injection molding operations have to improve and improve further in order to keep up with growing demands for quality, productivity, and competitiveness.
1) Root Cause Analysis of Defects
When defects occur, Root Cause Analysis tools such as 5 Whys, Fishbone Diagrams, or Failure Mode and Effects Analysis (FMEA) need to be applied in order to cure the root causes, not symptoms.
2) Cycle Time Optimization
Constant measurement of cooling time, injection speed, and handling time can add incremental improvements that result in significant long-term cost savings.
3) Operator Training and Certification
Ongoing training programs for machine operators, setup technicians, and quality inspectors ensure best practices are applied on a daily basis.
8. Conclusion
Plastic injection molding isn’t about having the right machine or the right material—about being an expert in the production process from prep to post-molding.
By employing controlled setup routines, proving early production, maintaining rigid process control, and adhering to continuous improvement, manufacturers can make high-quality parts with reliability while controlling cost, reducing defects, and minimizing downtime.
A discipline-process approach to injection molding is the secret to long-term manufacturing excellence in successful contemporary markets.
