Consumers tend to view graphic overlays as simply an interface for controlling devices or equipment, but from a technical viewpoint, these multipurpose components provide protection, visibility and functionality to customer products. Thin plastic layers printed with text, symbols and other graphics have many applications in industries like medicine, automation, aviation and consumer electronics. Production of overlays involves various processes tailored to meet specific criteria of durability, visual appeal and cost-effectiveness. Understanding these methods is critical in order to guarantee that an overlay performs to its full potential while upholding high-quality standards throughout its lifecycle.
In this article, we will take you step by step through the manufacturing process for graphic overlay from scratch, explaining details that may otherwise go overlooked at each link and providing more accurate guidance for producing a graphical overlay.

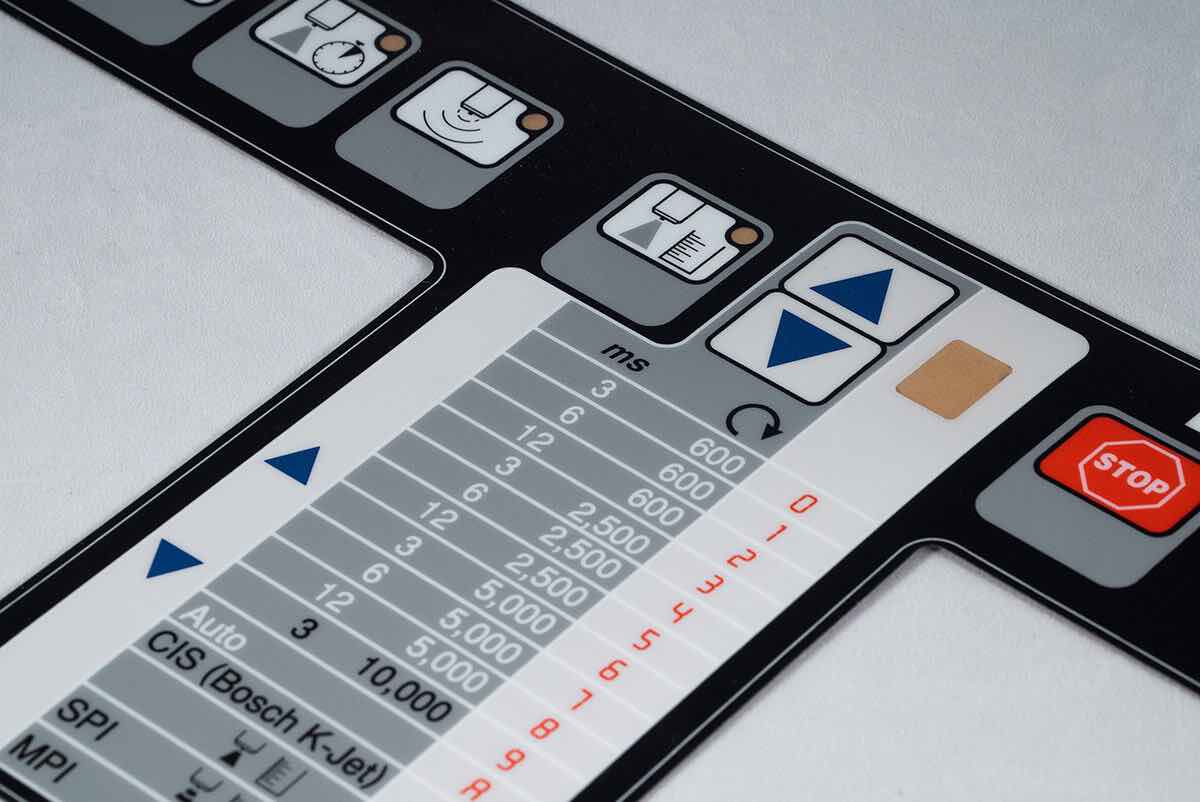

1. Preparations before making graphic overlays
Manufacturing graphic overlays requires an intricate combination of design, material science, and precision engineering. Companies that need to customize an overlay graphic for their product must consider several key factors to ensure they find an optimum design based on its application. Let’s examine some key considerations that go into selecting an ideal graphic overlay.
1. Develop sizing specifications
Before diving into your design options, it’s essential that you establish the size, shape and placement of your overlays. Doing this early can have a dramatic impact on how decisions are made throughout the decision-making process, particularly as thickness can influence how users interact with your product.
2. Consider environmental durability
Before selecting a design, it is crucial to identify its intended use in terms of durability. As part of production, this involves thinking about how it will be employed by its target environment. MSTR is a china graphical overlay factory. Its graphic overlays are utilized in various environments, environmental conditions form a crucial consideration when selecting materials and designing graphic overlay components. Since graphic overlays are employed both indoors, outdoors, and even in sterile environments, their lifetime is determined based on these conditions. Environment and use will play an integral part in selecting an appropriate graphic overlay material. Polyester graphic overlays tend to be most durable in harsh conditions and can withstand more than 1 million switch operations without losing their durability, while polycarbonate can withstand 100,000 operations while offering additional advantages such as being flame retardant and easier production (e.g., printing and cutting).
3. Features and functionality
Custom graphic overlays can include features that both strengthen company branding and improve the user experience. Add-ons such as tactile switches, faceplates and LED lighting are options to improve interaction between the device and users; embossed faceplates provide raised areas suitable for decorative logos or bezels or functional keypads while windows offer transparent areas suitable for viewing LCDs, LEDs or indicator lights etc.
4. Surface treatment
Graphic overlays can be finished with various coatings and treatments to appear more attractive, last longer, or be simpler to use. Common examples are glossy or matte finishes, texture or pattern, metallic finishes and antiglare coatings designed to minimize glare as well as antimicrobial coatings preventing bacteria.
5. Quality control
Quality assurance processes and testing processes are vital in maintaining highest-quality graphic overlays that become an integrated component of numerous devices and products. Effective quality controls must meet specified standards to operate reliably within their environments; typically this involves initial design verification, material inspections and print quality assessments as part of rigorous testing protocol to meet industry standards ensuring reliability for application purposes.

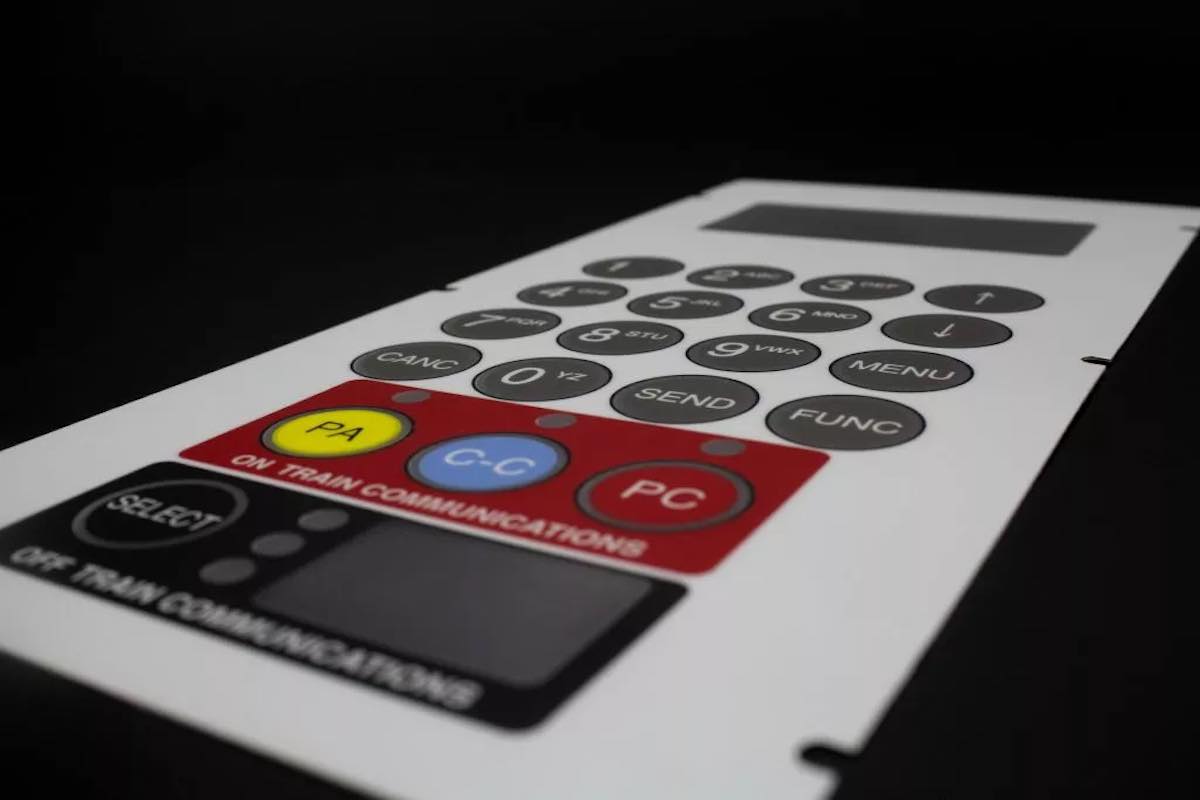

2. Graphics overlays production process
Graphic overlay manufacturing typically includes material selection, design and artwork preparation, printing, embossing (or debossing), adhesive application, die cutting, quality inspection and packaging as the major steps of production. Together, these steps work to produce high-quality, durable and visually appealing overlays suitable for various uses – please see this overview of graphic overlay manufacturing for further details.
1) Material selection
Selecting the correct substrate is critical in graphic overlay manufacturing. Graphic overlay materials must fulfill specific application needs such as durability, flexibility and resistance to environmental factors. Common materials for graphic overlay manufacturing include:
- Polycarbonate (PC): PC exhibits excellent impact strength and transparency and is therefore the go-to for demanding applications requiring transparency.
- Polyester (PET): PET gives great chemical resistance and stability to dimensions and is commonly employed for uses requiring thin-profile, flexible covers.
- Acrylic (PMMA): It is highly scratch resistant and clear, but less flexible than polycarbonate.
- Vinyl and PVC: They are also suitable for less demanding applications which prioritize flexibility over cost but may have less environmental benefits.
As every material possesses different properties and benefits, selecting one that can withstand environmental elements like heat, moisture and chemicals is of utmost importance.
2) Design and color
Graphic design should always come before production starts. The pre-production and design phases are all part of setting the stage for success; especially font style and size customization that impact user interface design. Color choices should both resonate with the company brand and user experience, creating something that is aesthetically pleasing and functional. Vector graphics programs need to be utilized when creating icons and logos with extreme precision; additionally, certain cutouts need to be reserved in advance in case certain modifications will have to be created later on.
3) Printing process
Graphics, text and symbols are printed onto cover material using high-quality printing methods like screen or digital printing for maximum color reproduction and detail reproduction. This step requires great care in order to guarantee accurate color reproduction and detail reproduction.
- Screen printing is an efficient, long-lasting way of creating graphic overlays due to its efficiency and vivid, long-term results. Screen printing can produce consistent, high-quality output from high-volume production runs; its inks are designed for long-lasting durability so as to remain vibrant even during rigorous applications where long-term performance is necessary. Furthermore, polyester, polycarbonate and vinyl materials all lend themselves well for this form of graphic production making this method suitable for multiple products and industries.
- Digital printing has revolutionized graphic overlay production by offering flexibility and precision. Using digital files, this method uses direct printing onto overlay materials, making complex designs possible with quick adjustments without physical screens or plates being needed for adjustments. Moreover, high-definition images with detailed texture are achieved using this printing method making digital printing ideal for complex graphics with small text.
- UV printing employs the use of ultraviolet light to dry or cure ink immediately as it is being printed so that there can be immediate handling and shorter production time. The technology can be implemented on numerous types of materials – even non-porous substrates – producing firm results with excellent finishes that are still resistant to weathering from exposure to the elements like sunlight or chemicals, making UV inks particularly well-suited for overlays in extreme environments.
4) Embossing
In some instances, graphic overlays do need raised (embossed) or debossed (debossed) areas on them to provide tactile feedback for users, such as on membrane switches and keyboards. This feature is particularly important.
- Embossing is the process of creating raised areas on an overlay to provide tactile buttons or symbols with raised areas, helping users easily recognize them without looking directly at them – something especially useful in industrial or automotive settings.
- Debossing refers to the creation of an indented area within an overlay, often used to highlight or create a 3D effect for brands or logos, adding depth and sophistication.
Both processes can bring form and function to high-end applications.
5) Bonding
Once printing and embossing or debossing the graphics, it follows logically that applying an adhesive backing would be the next step. This prevents the graphic overlay from coming loose from its device or control panel that it is being used to protect, providing added durability. When selecting a beneficial adhesive to achieve these, take into account environmental exposure and bond strength required. It must be compatible with materials used as well as surfaces upon which it will be used so that it can form a firm bond without altering the looks or function of its cover.
6) Die cutting
After bonding, the overlay material is cut to its desired shape and size using die-cutting technology, to ensure it fits its device of intended use. Laser cutting provides highly precise tools to craft intricate patterns on graphic overlays with clean edges for exceptional precision and smooth edges – an invaluable technique used for complex shapes, fine details, custom designs and high precision applications where accuracy and detail is critical.
3. Inspection and testing of graphic coverage
Once the cutting process is completed, graphic overlays must pass a stringent quality control process to ensure they meet our clients’ specific specifications. This typically involves:
- Visual inspection: Conduct a visual inspection to check for defects such as ink smears, alignment issues or embossing/debossing defects.
- Adhesive performance testing: Verify that the adhesive used has sufficient strength without peeling off or lifting away from its substrate surface.
- Functional testing: Functional testing ensures that graphic overlays perform their intended function accurately and reliably, including testing tactile response of buttons, clarity of display windows and the accuracy of any printed information. When testing overlays with capacitive touch sensors or electronic elements like capacitive touch sensors or capacitive touch sensors incorporated, functional testing involves assessing their responsiveness as well as accuracy to provide a positive user experience and ensure reliability. Ensuring all functional aspects work as intended is vital in providing users with a satisfying user experience as well as maintaining reliability over time.
- Environmental testing: If necessary, an overlay will undergo environmental tests that simulate real-life environments, including extreme temperatures, humidity levels and chemical exposure in order to verify its durability.
- Mechanical durability testing: Evaluates a cover’s resistance to physical stress and wear. This includes abrasion resistance, impact resistance, and flexural strength testing.
4. Conclusion
Producing graphic overlays requires careful consideration of many factors, including purpose and function, material selection, design aesthetics, user experience, manufacturing processes, testing procedures and quality assurance measures. By carefully considering each factor while taking steps to enhance pre and post quality control measures as needed – from developing them through to testing procedures, your graphic overlays will offer customers both practicality and beauty, giving them a fantastic user experience.
